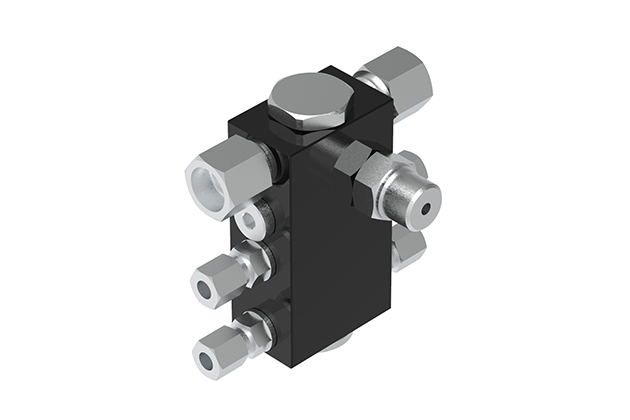

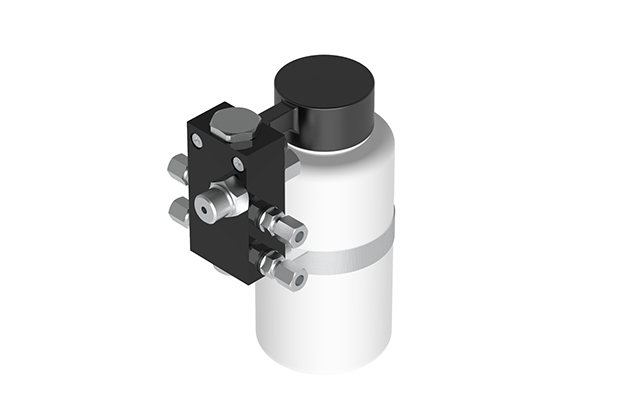

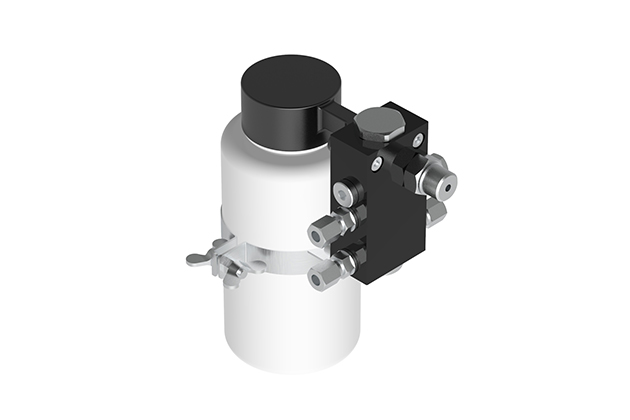

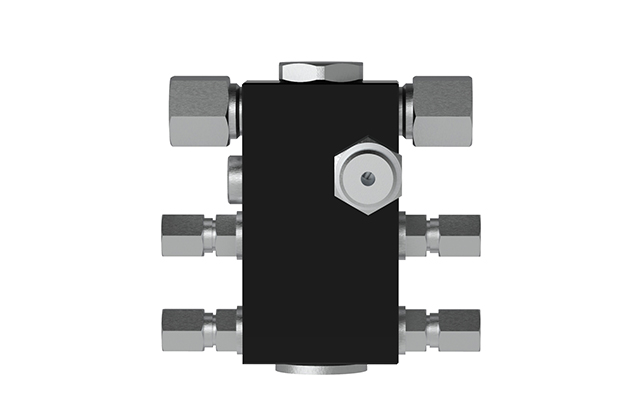

Grease suction and discharge device is the main part of waste grease collection system, which could reducing bearing failure rate and maintenance cost, improving equipment operation efficiency.
The grease suction and discharge device main job could be divided into two steps: firstly, grease suction, second, grease discharge. In this way, this device solve effectively the problem of bearing oil passage blockage together with the centralized lubrication system, keeping appropriate amount of grease in the inner cavity of the bearing;
Features and Benefits
01
Cleaning up timely the waste grease with abrasive debris in the inner cavity of the bearing, conducive to heat dissipation and wear reduction of the bearing;
02
Eliminating the pressure in the bearing cavity, ensuring an unblocked cavity and smooth injection of new grease into the bearing;
03
Conducive to the formation and maintenance of lubricating oil film, greatly prolonging the service life of bearing;
Technical Parameters
Grease suction and discharge device
Content
Parameter
Drive medium
Hydraulic grease
Single grease suction volume
1.35ml
Vacuum degree
After 10-25 working cycles, the vacuum degree of grease suction port shall not be greater than -0.07Mpa
Operating
temperature
-40°C~70°C
