Home > Products > Divider > Progressive

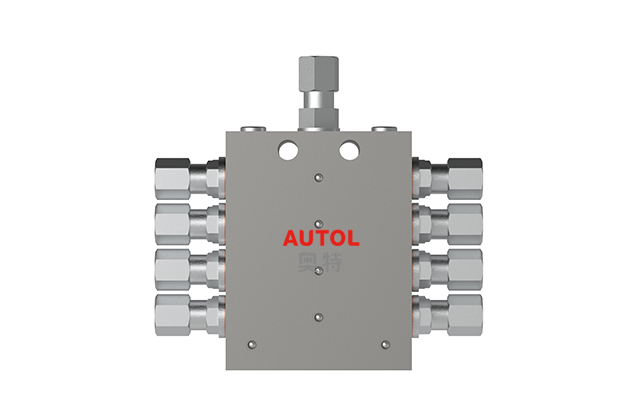

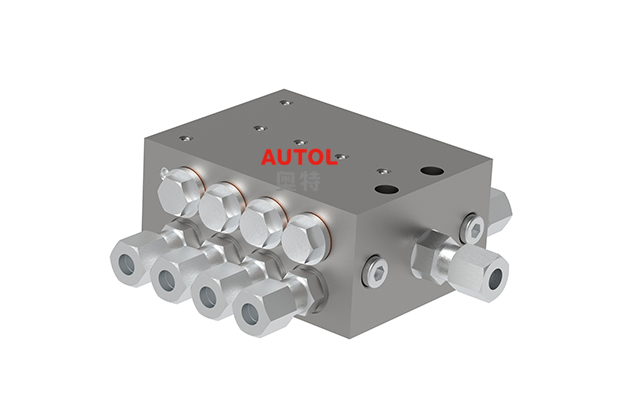

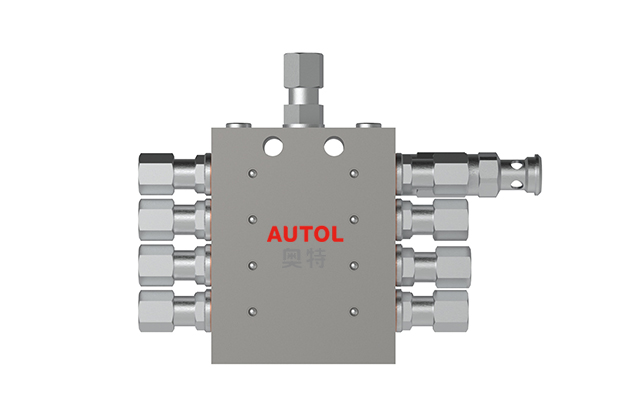

SSVA

Outlets are up to 20
High operating pressure
Exact lubricant metering
Unique internal crossporting technology
Optionally equipped with visual monitoring pin or with electrically monitored piston detector
Get Inquiry
Send Email
Whatsapp
Download Product Brochure
Download
SSVA
SSVA
SSVA
SSVA
SSVA
SSVA
Introduction
Features and Benefits
Technical Parameters
Related Cases
Introduction

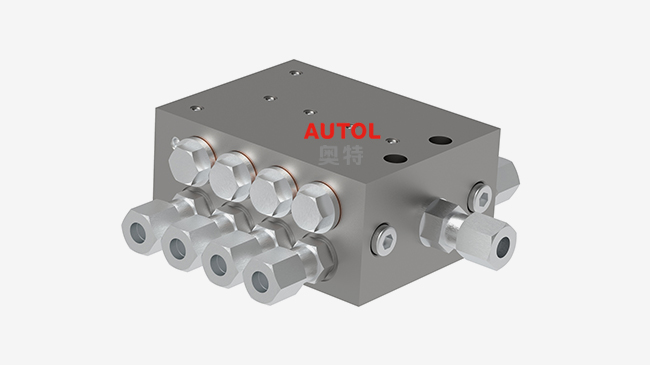

Through sequential actions of plungers, the progressive distributor progressively supplies lube points. It may be constructed with blocks or pieces. A block-type distributor is structured with one block, with outlet being connected with 6/8/10/12/14 ways, with high operating pressure, suitable for heavy-duty machinery. A piece-type distributor consists of one front piece, one rear piece and intermediate pieces. Each intermediate piece is designed with 2 outlets. Each group of intermediate piece include 3 to 8 pieces. Each delivery may be independently design, depending on plunger area and stroke
Features and Benefits
01

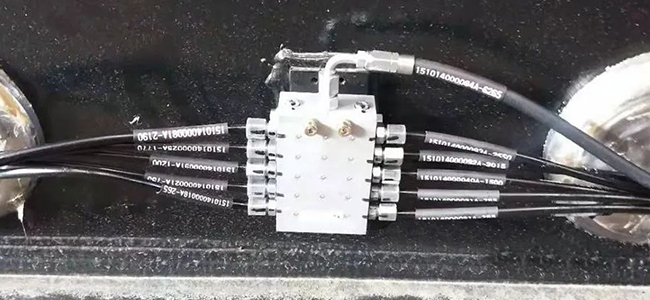

SSVA type metering device is a compact single block progressive metering device. For direct mount of fittings with no need of any sealing inbetween.
02

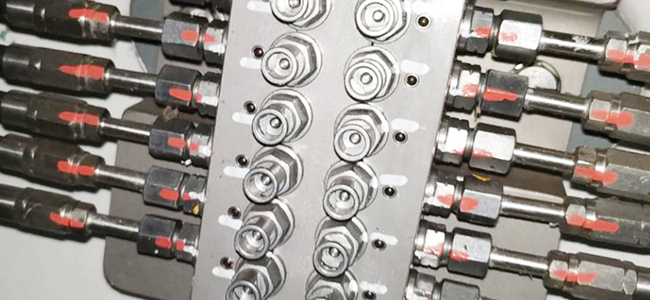

Available with pin indicator for visual system monitoring or with piston detector for electrical system monitoring.
03

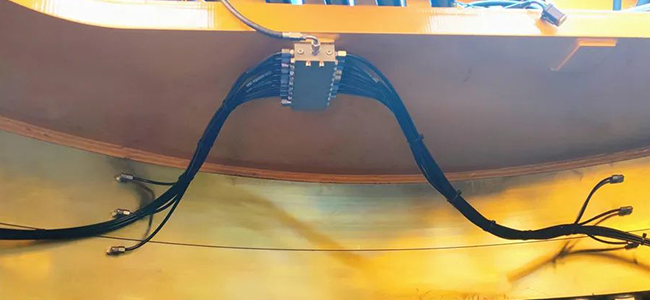

The outlets of SSVA are up to 20, max operating pressure is 35Mpa. SSVA is suitable for progressive greasing system, widely used in many fields,such as construction machinery,wind turbine.
Technical Parameters
SSVA
Content Parameter
Operating   temperature -40℃~80℃
Outlet flow 0.2ml/cy
Number of outlets 6-20
Operating
pressure		 35MPa
Start-up
pressure		 ≤2MPa
Applicable
grease		 NLGI-0#, 1# & 2#
Inlet/outlet
thread		 M10X1


Distributor
Photo Name Description
Inlet connector Inlet fitting D6
Inlet fitting D10
Cutting Olive M10*1-20A
Cap Nut M10*1-45Z
Outlet fitting(with check valve )
Outlet Blind Cap M10x1
Hall Sensor AMP type
Indicator Rod Assembly
SSVA  bracket
