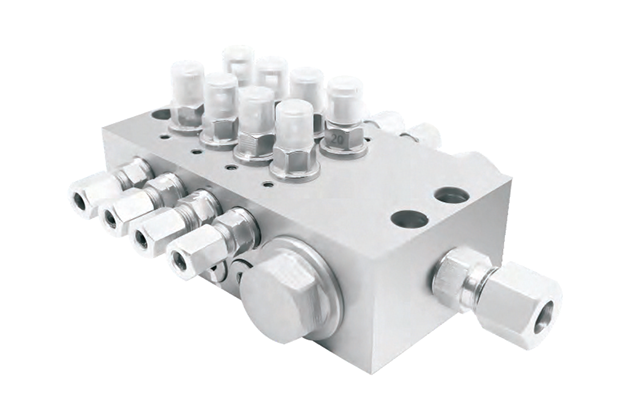

The integrated single-line distributor is a quantitative oil supply device.
The lubricating grease pumped by the lubrication pump is delivered to the distributor through the main oil circuit, and the exchange of lubricating grease between the internal oil storage chamber and the pressure oil chamber of the distributor is realized through an electromagnetic directional valve, so as to achieve the function of quantitative distribution of lubricating grease.
Features and Benefits
01
The integrated single line distributor can achieve a variety of combinations with different oil volume ratios by replacing the quantitative connector.
02
This type grease distributor has a low failure rate, what’s more, the blockage of any lubrication point will not affect the normal operation of the system.
Technical Parameters
Single line distributor
Content
Parameter
Operating temperature
-40℃~70℃
Displacement specification
0.1, 0.4& 0.6 mL/cy
Operating
pressure
25MPa
Number of outlets
2-16
Applicable
grease
NLGI--up to 2#
Outlet thread
M10 x 1
