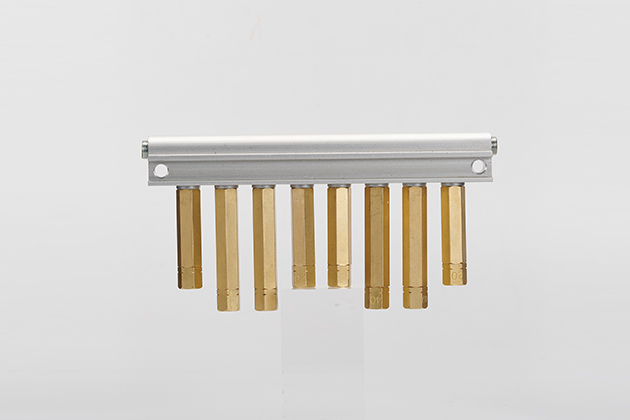

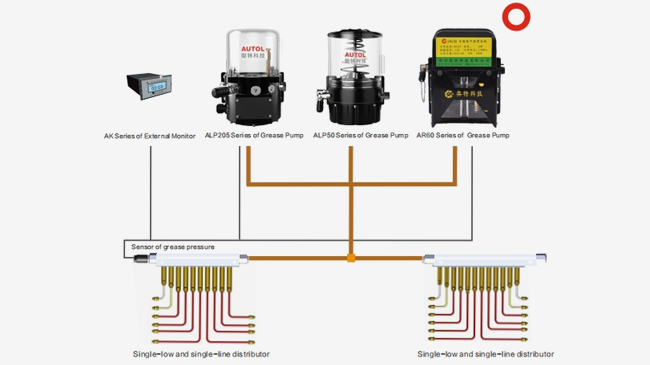

Single row line distributor, another name is quantitative pressurized distributor,which is composed of distributor housing, umbrella valve, quantitative plunger, core rod, return spring, grease outlet connector, coupling body and so on. When lubricating pump station supply grease in pressurized manner through main grease pipeline,
The distributor supplies grease stored in the previous cycle to each lubricating point at
larger pressure by grease distribution pipelines.After the lubricating pump station stops, distributor grease chamber measures volume of grease stored.

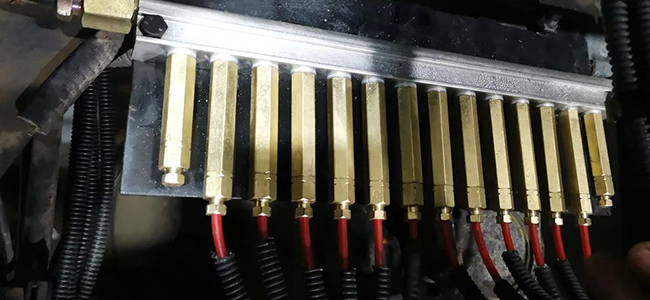

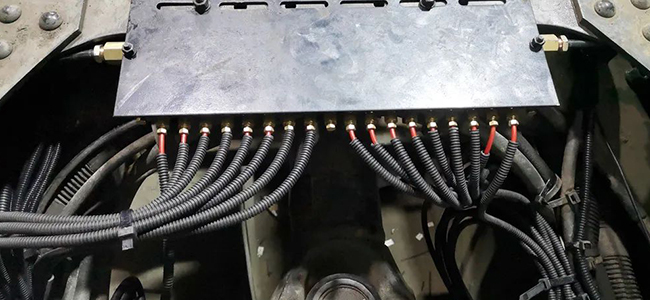

Features and Benefits
01
It is necessary to set three grease discharge volume according to grease requirement of each friction pair: 0.13mL/time, 0.2mL/time and 0.4mL/time respectively
02
The grease discharge pressure can reach up to 2.5MPa at normal temperature. In cold temperatures, the grease discharge pressure automatically increases as the temperature drops, to make sure viscous grease can be injected smoothly into the friction pair.
Technical Parameters

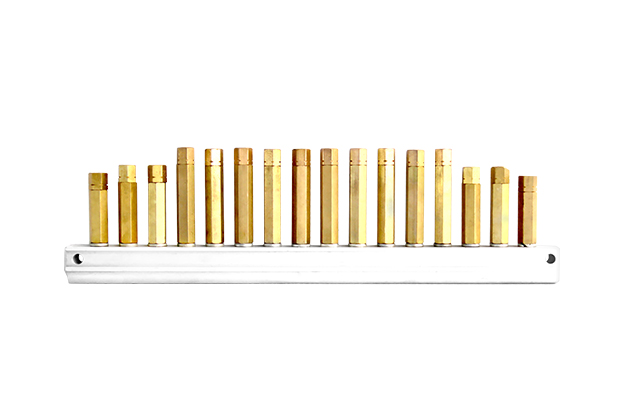

Single row line distributor
Content
Parameter
Operating temperature
-40℃~80℃
Displacement specification
0.1, 0.2 & 0.4 mL/cy
Operating
pressure
4.5MPa
Number of outlets
4-20
Applicable
grease
NLGI--000#, 00# & 0#
Outlet thread
M8X1
