Home > Products > Pump > Dual-Line

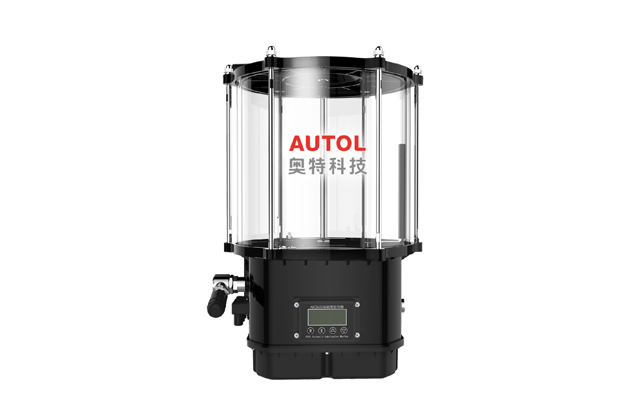

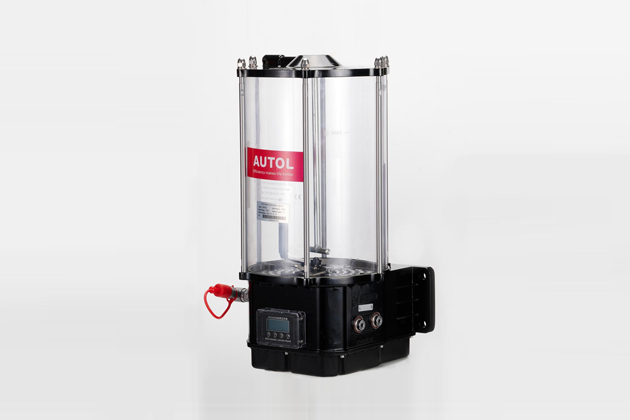

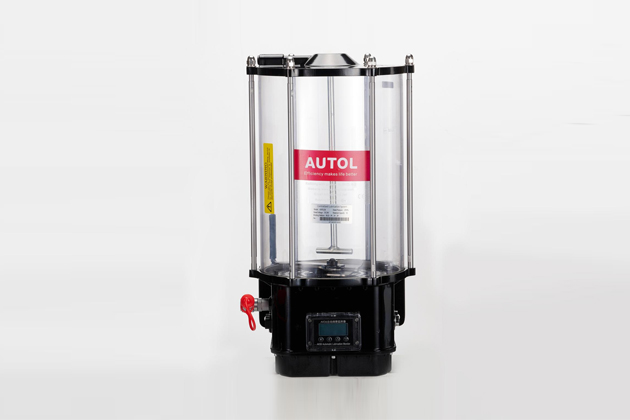

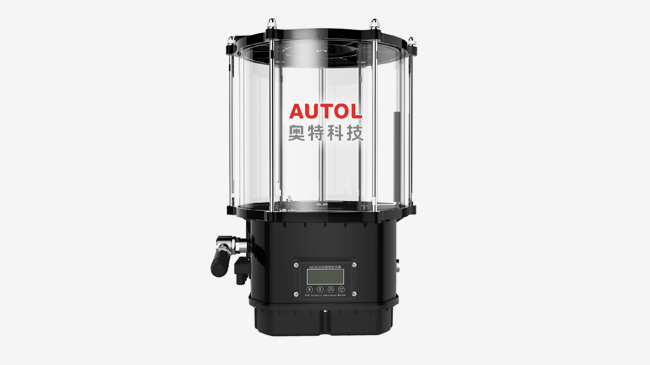

ADP121 Lubrication Pump

ADP120 series dual-line lubrication pumps are the new generation of centralized lubrication systems developed by AUTOL after the long-term market survey and technological innovation.
The series pumps are driven by high-performance DC motors, are internally equipped with worm gear reducers, and can drive 3 plungers to work at the same time.
They are internally installed with overflow valves and mechanical reversing valves, which not only provides a simple and aesthetic appearance of lubrication pump, but also ensures the sealing of overflow valve.
Get Inquiry
Send Email
Whatsapp
ADP121 Lubrication Pump
ADP121 Lubrication Pump
ADP121 Lubrication Pump
ADP121 Lubrication Pump
ADP121 Lubrication Pump
ADP121 Lubrication Pump
Introduction
Features And Benefits
Technical Parameters
Related Cases
Introduction
ADP120 series dual-line lubrication pumps are the new generation of centralized lubrication systems developed by AUTOL after the long-term market survey and technological innovation. AUTOL has applied multiple technological invention and innovation patents during the development. The series pumps are driven by high-performance DC motors, are internally equipped with worm gear reducers, and can drive 3 plungers to work at the same time. They are internally installed with overflow valves and mechanical reversing valves, which not only provides a simple and aesthetic appearance of lubrication pump, but also ensures the sealing of overflow valve.
Features And Benefits
01 Applications
The series pumps are applicable to the dual-line centralized lubrication system, and are mainly used in the engineering machinery, wind power generation and other fields.
Technical Parameters
ADP121 Lubrication Pump
Content Parameter
Function principle Electric plunger pump
Operating temperature -40℃~70℃
Oil tank capacity 4 L, 8 L,10L,15L&20 L
Voltage DC24V/AC230V
Operating current ≤3A
Output flow 12 ml/min
Operating pressure 20MPa
Number of outlets 2
Applicable grease NLGI-0#, 1# & 2#
IP grade IP65
Monitor Internal layout
Mounting position with follower plate: any
without follower plate: upright

Note: Please select the low-temperature grease of the same grade reasonably in winter in cold areas.
