As a new generation of centralized lubrication systems developed by Autol Technology through long-term market research and technological innovation.

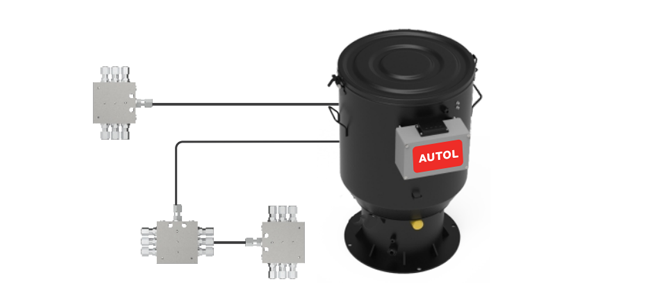

The progressive centralized lubrication system can grease all parts to be greased in proportion through the progressive method, so as to meet the different consumption requirements of grease at different parts.
It is suitable for medium and large excavators and other construction machinery and equipment.
As a new generation of centralized lubrication systems developed by Autol Technology through long-term market research and technological innovation, the progressive centralized lubrication system can grease all parts to be greased in proportion through the progressive method, so as to meet the different consumption requirements of grease at different parts. It is suitable for medium and large excavators and other construction machinery and equipment.
Features And Benefits

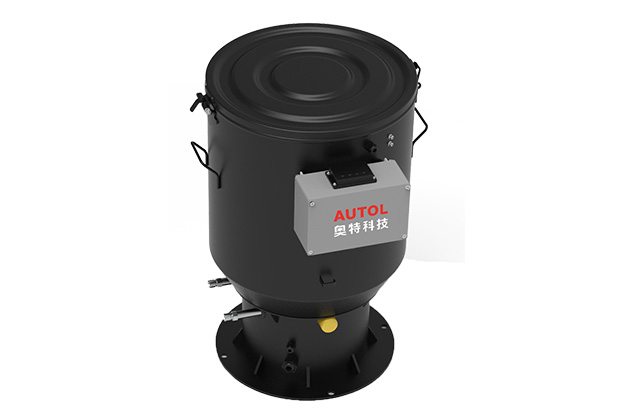

01 Lubrication Pump
The lubrication pump consists of a grease drum assembly, a pump base, a motor reducer assembly, a plunger assembly, a shuttle block, an impeller, a liquid level assembly, and a monitor.The lubrication pump operates according to the control logic and time set by the monitor.

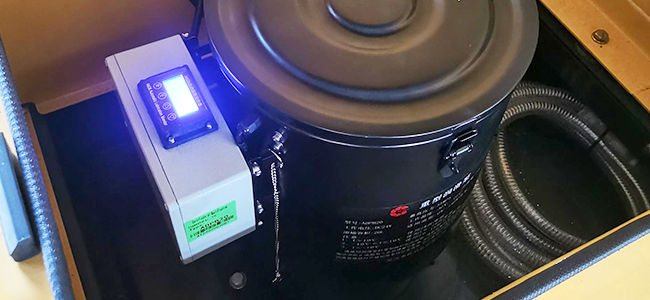

02 Monitor
The motor inside the lubrication pump drives the shuttle block and plunger to reciprocate through the reducer and pumps the grease in the drum to a lubrication line through a check valve and the pressure switch successively.
Technical Parameters

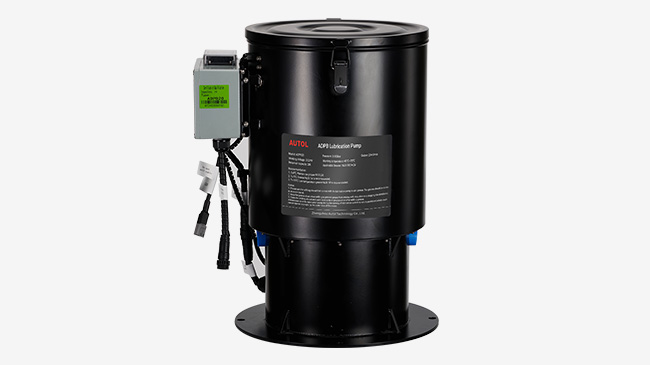

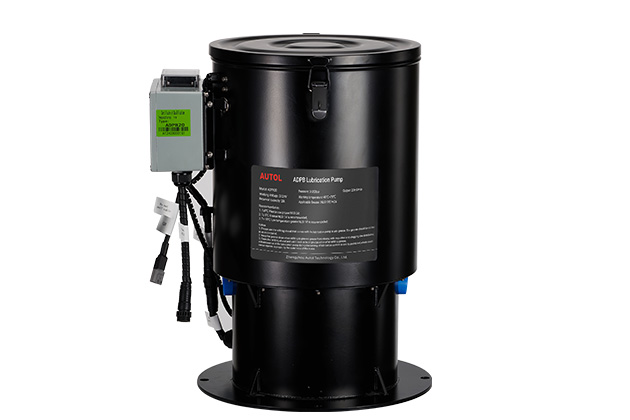

ADPB Lubrication Pump
The main parameters of the lubrication pump are as follows:
Model
ADPB20L
Capacity
20L
Max. pressure
35 MPa
Pump capacity
20 ml/min
Rated voltage
DC24V
Storage temperature
-45°C ~ +80°C
Operating temperature
-30°C～+70°C
Recommended fuse
15A
