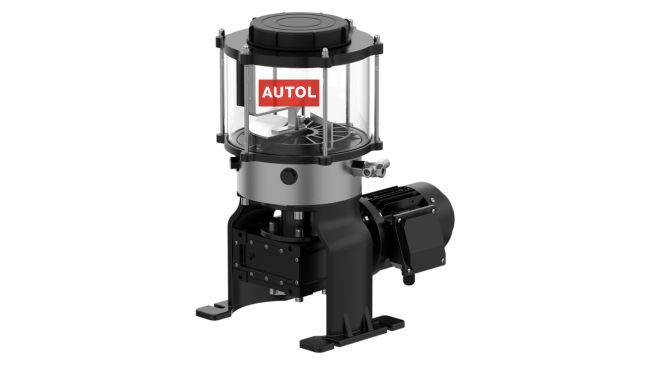

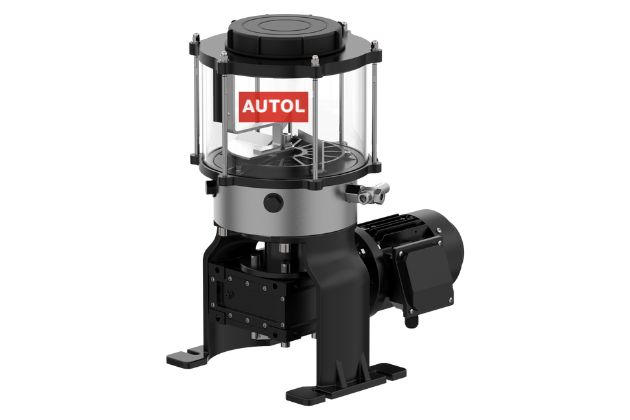

ABDB-05 Lubrication Pump

ABDB-05 series lubrication pumps are HP multi-point pumps, which can support up to 5 pump elements with their displacement adjustable, and are applicable to the progressive automatic lubrication system.
They can be used to apply the grease to lubrication points directly or as central lubrication pumps of the large-sized progressive system.
Application: mining, oil field, port, construction machinery, heavy machinery and equipment and other industries.
ABDB-05 Lubrication Pump
ABDB-05 Lubrication Pump
ABDB-05 Lubrication Pump
ABDB-05 Lubrication Pump
Introduction
Technical Parameters
Related Cases
Introduction
ABDB-05 series lubrication pumps are HP multi-point pumps, which can support up to 5 pump elements with their displacement adjustable, and are applicable to the progressive automatic lubrication system.

They can be used to apply the grease to lubrication points directly or as central lubrication pumps of the large-sized progressive system, and are applicable to the mining, oil field, port, construction machinery, heavy machinery and equipment and other industries.
Technical Parameters
ABDB-05 Lubrication Pump
Model ABDB-05
Number of outlets 1-5
Outlet thread M22x1.5(internal thread)
Operating pressure 35MPa
Reservoir capacity 5L、10L、20L
lubricant Grease up to NLGI-2
Lubricating oil with viscosity above 200mm2/s
Output 0.075ml/cy、.0.125ml/cy、0.225ml/cy
0.035m//cy~0.15ml/cy(adjustable)
Driver 0.12KW
Ratio 70:1,300:1
Electrical connection multi-phase motor:380-420 VAC/50 Hz;440-480 VAC/60 Hz;
single-phase motor:500VAC/50Hz
Operating temperature -25℃-70℃
Liquid level detection Laser high and low liquid-level alarm
