Home > Products > Pump > Multi-Line

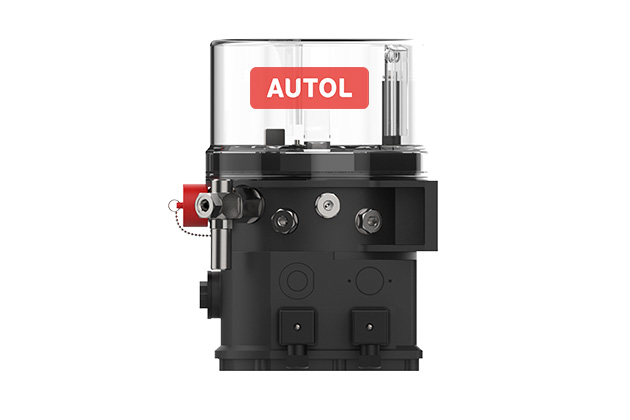

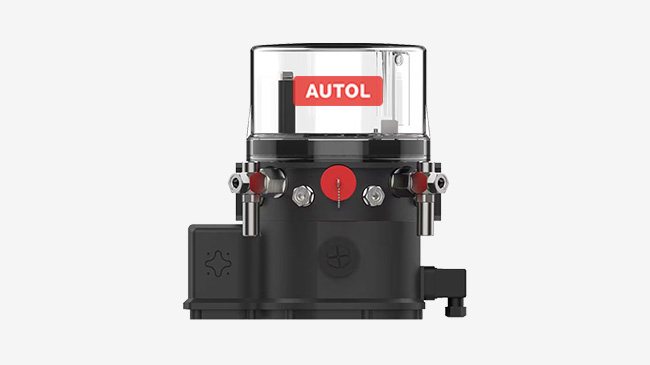

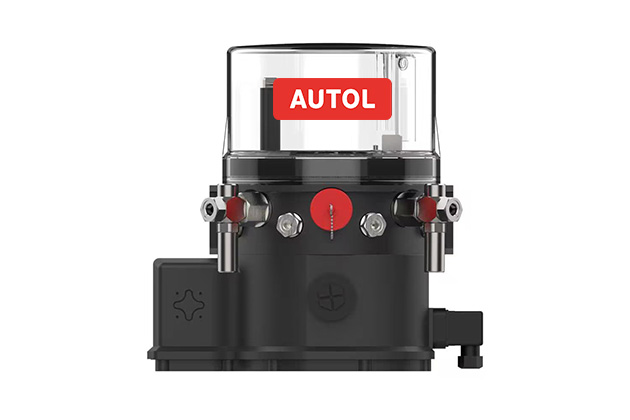

ALPE100 multi-function pump

The ALPE series pump is a multi-functional electric piston pump that can be used in progressive and multi-line systems, and the two systems can also be used in combination.It has small size and light weight.
The ALPE series pumps can be equipped with maximum 10 outlets, 2 of which can be connected to the progressive system and the other 8 can be directly connected to the lubrication point.
Application: Mainly used in commercial vehicles, small construction machinery, agriculture machinery and other industries.
Chat Now
Send Email
Whatsapp
ALPE100 multi-function pump
ALPE100 multi-function pump
ALPE100 multi-function pump
ALPE100 multi-function pump
Introduction
Technical Parameters
Related Cases
Introduction
The ALPE series pump is a multi-functional electric piston pump that can be used in progressive and multi-line systems, and the two systems can also be used in combination.It has small size and light weight. The ALPE series pumps can be equipped with maximum 10 outlets, 2 of which can be connected to the progressive system and the other 8 can be directly connected to the lubrication point.
Application: Mainly used in commercial vehicles, small construction machinery, agriculture machinery and other industries.
Technical Parameters
ALPE100 multi-function pump
Model ALPE100
Working principle Electric plunger pump
Operating temperature -40°C - +70°C
Reservoir capacity 1L/2L
Operating voltage DC24V/DC12V
Operating current ≤3A
Maximum qty of plunger units 8 small plunger units and 2 regular plunger units
Small plunger unit displacement 5mm³/cy、10mm³/cy、15mm³/cy、25mm³/cy、50mm³/cy
Regular plunger units displacement 1.5ml/min、2.5ml/min、4.5ml/min
Maximum pressure 30MPa
Applicable grease NLGI-0#.l#.2# grease
Protection grade IP65
Monitor Built-in or external
Installation position Vertical
