Home > Products > Pump > Multi-Line

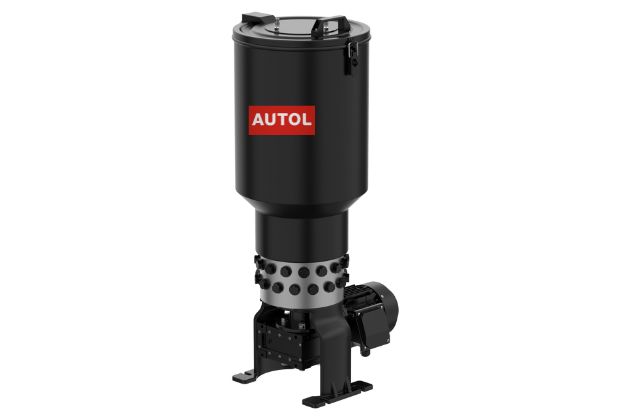

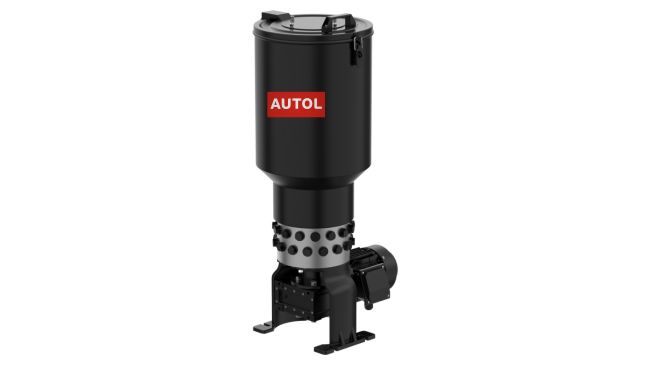

ABDB30 Lubrication Pump

ABDB-30 pumps are equipped with three-phase motors at different voltages (AC 380 V/50 Hz).
Users can also select no motors but configure models by themselves.
The oil tank of each ABDB-30  pump has a standard volume of 30 L.
Other volumes need to be    customized. High- and low-oil level alarm functions are optional.
Get Inquiry
Send Email
Whatsapp
ABDB30 Lubrication Pump
ABDB30 Lubrication Pump
Introduction
Technical Parameters
Related Cases
Introduction
ABDB-30 series lubrication pumps are HP multi-point pumps, which can support up to 30 pump elements with their displacement adjustable, and are applicable to the progressive automatic lubrication system. They can be used to apply the grease to lubrication points directly or as central lubrication pumps of the large-sized progressive system, and are applicable to the mining, oil field, port, construction machinery, heavy machinery and equipment and other industries.

ABDB-30 pumps are equipped with three-phase motors at different voltages (AC 380 V/50 Hz). Users can also select no motors but configure models by themselves. The oil tank of each ABDB-30  pump has a standard volume of 30 L. Other volumes need to be    customized. High- and low-oil level alarm functions are optional.
Technical Parameters
ABDB30 Lubrication Pump

Content Parameter
Number of plungers 1- 30
Outlet thread G1/4 (internal thread)
Max operating pressure  350 bar
lubricant Grease up to NLGI-2
Lubricating oil with viscosity above 200mm2/s
Number of plungers K6 (0.033 ml/cy ~ 0. 16 ml/cy)
K7 (0.045 ml/cy ~ 0.23 ml/cy)
Rated speed 15.4r/min
IP class IP55
Operating temperature -20℃~70℃
Liquid level detection Laser high and low liquid-level alarm
