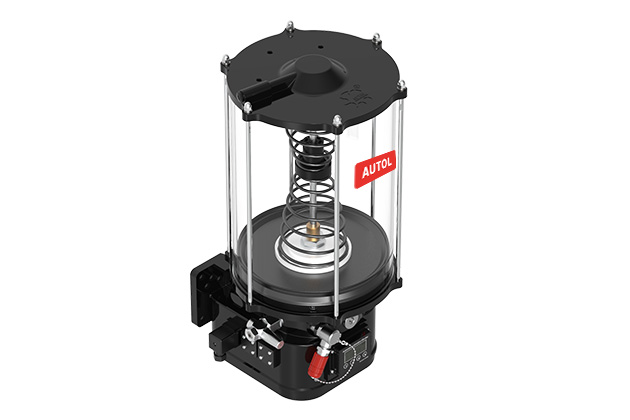

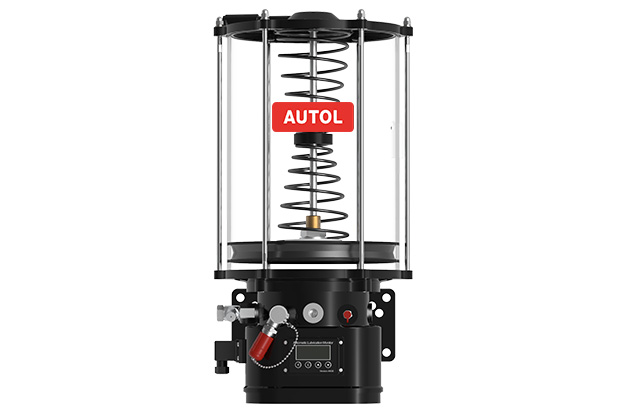

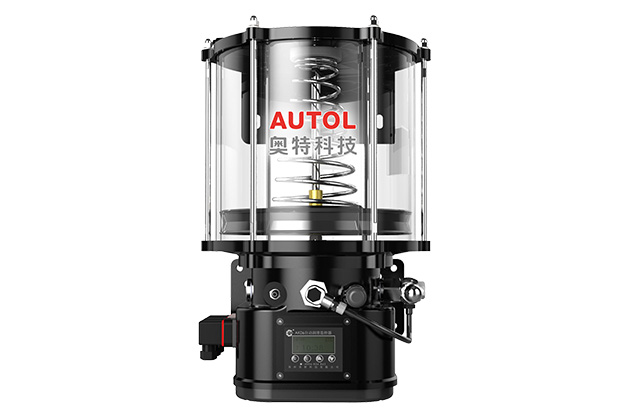

ALPB122 Lubrication Pump

ALPB120 series plunger pumps are driven by high-performance DC motors, are internally equipped with worm gear reducers, and can drive up to 4 plungers to work.
Pump bodies are made of die-casting aluminum with stable and reliable performance.
The oil   tank is made of PC transparent material to facilitate observing the oil level.
These pumps can be equipped with ECU liquid crystal monitor and low liquid-level  alarm device.
ALPB122 Lubrication Pump
ALPB122 Lubrication Pump
ALPB122 Lubrication Pump
ALPB122 Lubrication Pump
ALPB122 Lubrication Pump
ALPB122 Lubrication Pump
Introduction
Features And Benefits
Technical Parameters
Related Cases
Introduction
ALPB120 series plunger pumps are driven by high-performance DC motors, are internally equipped with worm gear reducers, and can drive up to 4 plungers to work. Pump bodies are made of die-casting aluminum with stable and reliable performance. The oil   tank is made of PC transparent material to facilitate observing the oil level. These pumps can be equipped with ECU liquid crystal monitor and low liquid-level  alarm device.
Features And Benefits
01
The series pumps are applicable to the progressive centralized lubrication system, which are mainly used in the engineering machinery, wind power generation, port-based metallurgy, food machinery, papermaking, printing and other equipment.
Technical Parameters
ALPB121 Lubrication Pump
Content Parameter
Function principle Electric plunger pump
Operating temperature -40℃~70℃
Oil tank capacity 8 L, 15 L & 20 L
Voltage DC12V/DC24V/AC230V
Operating current ≤3A
Number of outlets 1-4
Output flow 1.5 ml/min, 2.5 ml/min & 4.5 ml/min
Operating pressure 30MPa
Applicable grease NLGI-0#, 1# & 2#
IP grade IP66
Monitor External/internal layout
Mounting position with follower plate: any
without follower plate: upright

Note: Please select the low-temperature grease of the same grade reasonably in winter in cold areas.
