Home > Products > Pump > Single Line

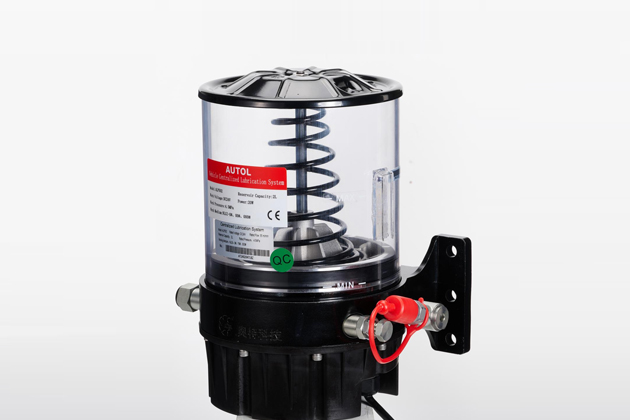

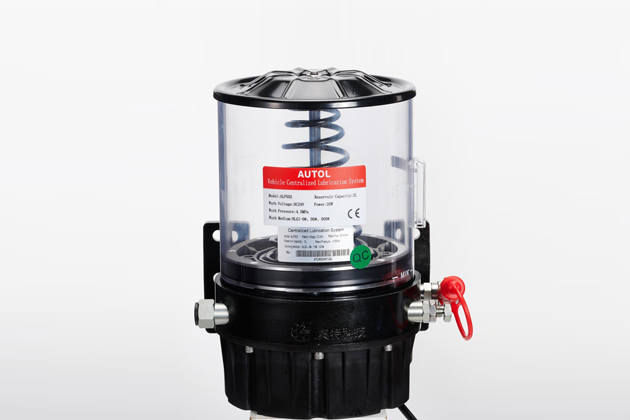

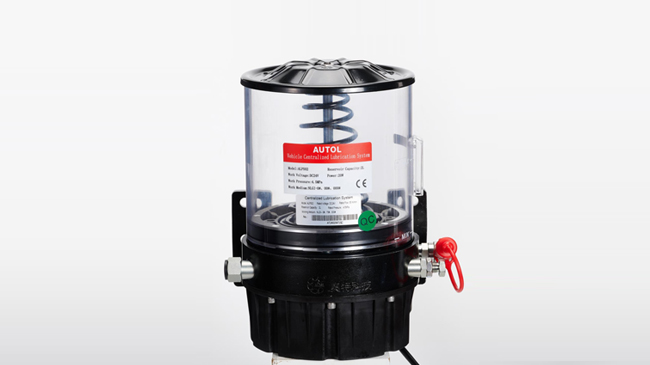

ALP502 Lubrication Pump

ALP50 series lubrication pumps are arranged with spring pistons in oil tanks to assist the operation of governor.
The governor ensures that the grease in the oil tank is pressurized, improves oil absorption conditions in the lubrication pump, and treats the grease in the oil tank to be cleaner.
The series pumps are applicable to the single-line centralized lubrication system, which are mainly used to lubricate chassis of commercial vehicles, trucks and other vehicles in high cold, high altitude and other severe conditions.
Get Inquiry
Send Email
Whatsapp
ALP502 Lubrication Pump
ALP502 Lubrication Pump
ALP502 Lubrication Pump
ALP502 Lubrication Pump
Introduction
Technical Parameters
Related Cases
Introduction
ALP50 series lubrication pumps are arranged with spring pistons in oil tanks to assist the operation of governor. The governor ensures that the grease in the oil tank is pressurized, improves oil absorption conditions in the lubrication pump, and treats the grease in the oil tank to be cleaner.

Applications: The series pumps are applicable to the single-line centralized lubrication system, which are mainly used to lubricate chassis of commercial vehicles, trucks and other vehicles in high cold, high altitude and other severe conditions.
Technical Parameters
ALP502 Lubrication Pump
Content Parameter
Function principle Electric gear pump
Operating temperature -40℃~70℃
Oil tank capacity 2L
Voltage DC24V/DC12V
Operating current ≤ 3 A/6 A at room temperature
Output flow 55ml/min
Operating pressure 4.5Mpa
Lubricant Oil and NLGI--0#, 00# & 000#
IP grade IP65
Monitor External layout
Mounting position  any
