Multi-line centralized lubricating system

Each progressive divider is directly connected to the multi-point pump and is independent of each other, with high grease supply efficiency
Each progressive divider can be monitored independently, and the alarm signal location can be accurately located
The operation of the monitoring system can be remotely operated and lubrication reports can be generated, and the equipment operation status can be grasped in time
Multi-level authority management avoids unauthorized operations and ensures the normal and efficient operation of the equipment
Widely used in equipment in mining, metallurgy, power and other industries
Chat Now
Send Email
Whatsapp
Multi-line centralized lubricating system
Multi-line centralized lubricating system
Introduction
Features And Benefits
Technical Parameters
Related Cases
Introduction

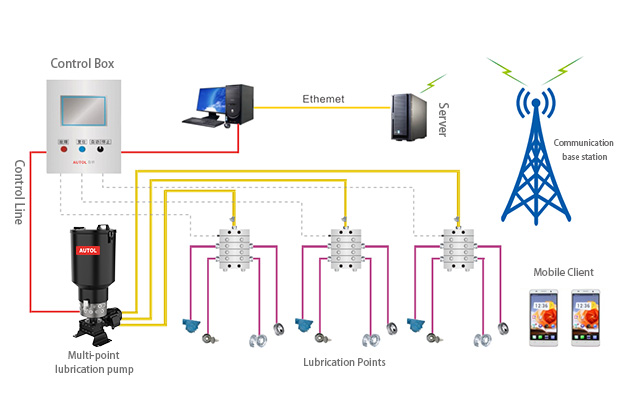

The multi-line centralized lubrication system uses PLC as the central control unit to control the operation of the multi-point lubrication pump, distributes high-pressure grease to each progressive divider, and quantitatively distributes it to each lubrication point through the progressive divider. The progressive divider is equipped with a sensor to monitor the working status of each progressive divider in real time and feed back the information to the central control unit.

The system consists of a control box, a multi-point lubrication system, progressive divideras, pipeline accessories, a host computer, a monitoring system, etc.
Features And Benefits

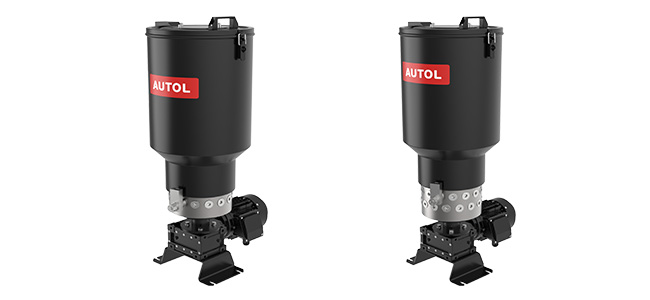

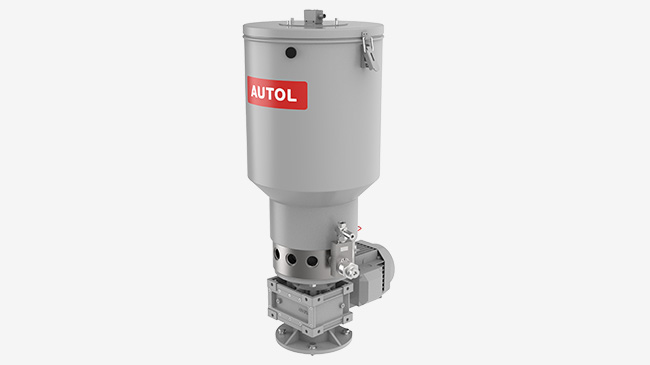

01 Piston Pump
ABDB-30 series lubrication pump is a high-pressure multi-point pump that can support up to 30 pump elements with adjustable displacement. It is suitable for progressive automatic lubrication systems. It can directly grease the lubrication points or serve as the central lubrication pump for large progressive systems. It is suitable for mines, oil fields, ports, construction machinery, heavy machinery and other industries.

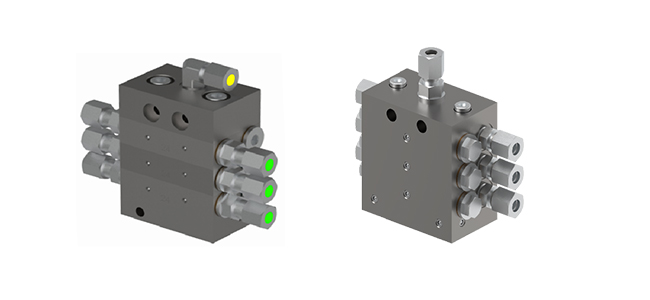

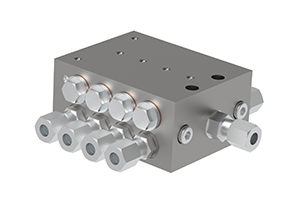

02 Progressive Divider
JPQ progressive divider is a combination of working pieces with different displacement specifications to meet the displacement requirements of different lubrication points, and can achieve the oil volume ratio of more than 21 times. Sensors can be configured according to the requirements to monitor the operating status of the divider.
03 Control Box
ATK series control box uses Siemens PLC and touch screen as controller and text display to fully coordinate the actions of various parts of the system. ATK control box can monitor the system operation status, and maintain communication with the host computer.
Technical Parameters
Piston Pump Parameters
Product Picture
Model ABDB12 Series ABDB15 Series ABDB30 Series
Electrical connection multi-phase motor :
380-420 VAC/50 Hz;
440-480 VAC /60 Hz;
single-phase motor:
500VAC/50Hz		 multi-phase motor :
380-420 VAC/50 Hz;
440-480 VAC /60 Hz;
single-phase motor:
500VAC/50Hz		 multi-phase motor :
380-420 VAC/50 Hz;
440-480 VAC /60 Hz;
single-phase motor:
500VAC/50Hz
Pump element output K7(0.1ml/cy〜0.36ml/cy)
K12(0.29ml/cy〜1.05ml/cy)		 K6（0.033ml/cy〜0.16ml/cy )
K7（0.045ml/cy〜0.23ml/cy）		 K6（0.033ml/cy〜0.16ml/cy )
K7（0.045ml/cy〜0.23ml/cy）
Reservior 30L 30/60/100L 30/60/100L
Outlet Number 1-12 pcs 1-15 pcs 1-30 pcs
Operating Pressure 35 MPa 35 MPa 35 MPa
Lubricants oil: viscosity of at least 40 m㎡/s
grease: up to NLGl-2		 oil: viscosity of at least 40 m㎡/s
grease: up to NLGl-2		 oil: viscosity of at least 40 m㎡/s
grease: up to NLGl-2
Protection class IP55 IP55 IP55
Operating Temperature T -20 °C~70°C T -20 °C~70°C T -20 °C~70°C
Distributor Parameters
Product Picture
Model SSVA JPQ
Operating Temperature T -40 °C~80°C T -40 °C~80°C
Outlet Flow 0.2 ml/cy 0.08, 0.16, 0.24, 0.32ml/cy
0.8, 1.04,1.28,1.6ml/cy
Number of Outlets 6-22 outlets 6-24 outlets
Operating Pressure 35 MPa 30 MPa
Applicable Grease NLGI-0#,1#,2# NLGI-0#,1#,2#
Inlet/outlet Thread M10 x 1 M10 x 1
Tags
Zhengzhou Autol
Do You Need Advice, Inquiries Or Orders? We'd Love To Help You.
0086-400-6836862
Email: info@autol.net
Related Cases

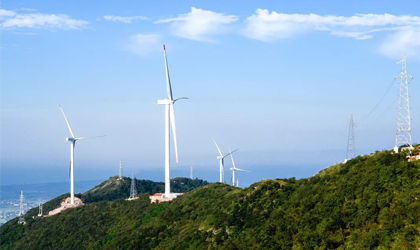

Application in wind turbine pitch control
Wind turbines are large-scale, high-precision, high-value operating equipment. All bearings, gears and other components are in frequent start-stop and high-load continuous operation conditions.
View More +
Application of Autol centralized lubrication system on 750H excavator
Application environment: Excavators are the main construction machinery in earthwork projects; according to statistics, more than 60% of mechanical failures are caused by poor lubrication;
View More +

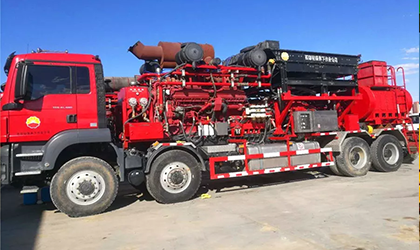

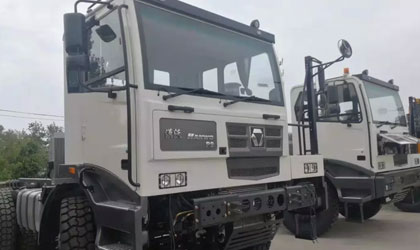

Application of AUTOL centralized lubrication system on fracturing truck
Fracturing truck is a special vehicle used to inject high-pressure, large-displacement fracturing fluid into the well, press the formation open and squeeze the proppant into the crack.
View More +
Application of Autol centralized lubrication system on 757 loader
The loader installed this time uses the ALP1022 lubrication pump and 3 distributors. The farthest distributor is equipped with an oil pressure sensor.
View More +
Application of automatic grease changing system on wind turbine main shaft
The wind power automatic grease changing system is a comprehensive solution that integrates a centralized lubrication system and an active grease removal system.
View More +
Application of Centralized Lubrication System on Steel Grabbing Machine
The steel grabber is a multi-purpose and efficient material handling equipment, which is widely used in major steel mills, ports, yards
View More +

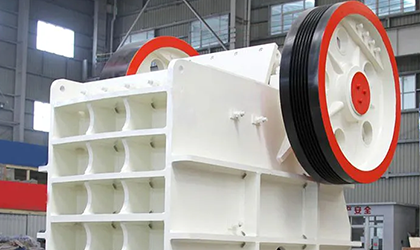

Application of AUTOL centralized lubrication system on crusher
The heavy industry crusher installed this time uses ALP812 lubrication pump, 2 distributors, and the farthest distributor is installed with oil pressure sensor.
View More +

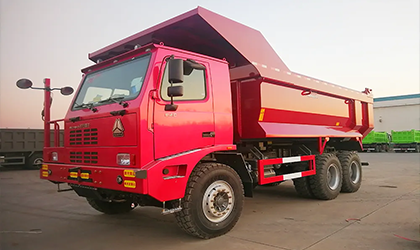

Application of centralized lubrication on 90T mining truck
Application environment: Mining machinery and equipment have complex structures and harsh operating environments.
View More +

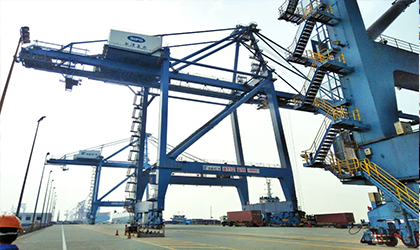

Application of intelligent lubrication system in Port
Auto installed AT3000 intelligent lubrication system for the port's stackers, reclaimers and dumpers.
View More +

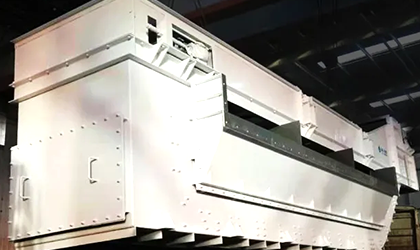

Application of centralized lubrication system on heavy medium shallow trough separator
Heavy medium shallow trough separator is a large-scale coal washing equipment for mining, which is widely used in large coal preparation plants.
View More +
More Products

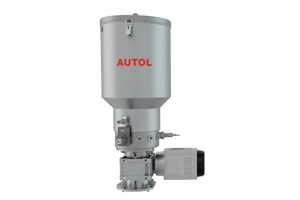

ABDB-12 Lubrication Pump
ABDB-12 Lubrication Pump
Chat Now View More

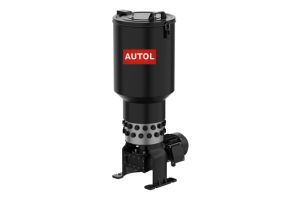

ABDB30 Lubrication Pump
ABDB30 Lubrication Pump
Chat Now View More

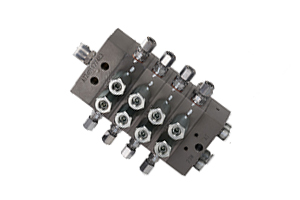

SSVA
